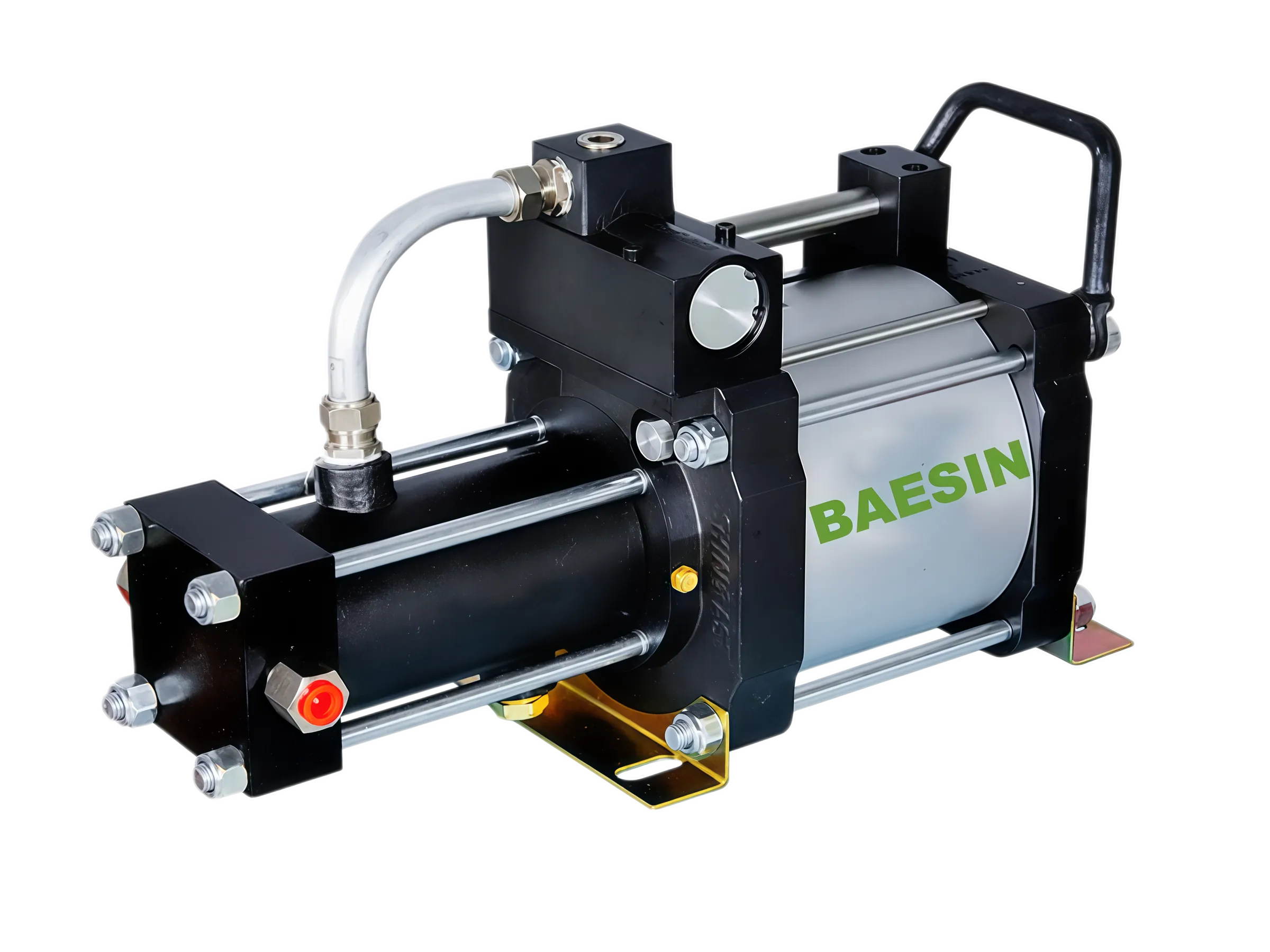

Pneumatic Booster Pumps for Gas

BPG-1D Series

Single-acting
Single-stage
With one air drive piston
For operating pressures up to 800 bar (11,603 psi)
Drive air 3-8 bar(43.5-116 psi)
O₂, N₂, Ar, CO₂, H₂, He, Air, CH₄, C₂H₂, C₃H₈, C₄H₁₀, CO...

Description

Baesin's pneumatic booster pumps can be divided into two main categories: booster pumps for gas and booster pumps for liquid. The pump's boost ratio, number of drive cylinders, number of boost cylinders, and number of boosting stages can be identified from the name of each model. For example: BPG-1D-25, which means a single-acting, single-stage booster pump with one air drive piston and a boost ratio of 1:25, achieving a maximum working pressure of 200 bar (2900 PSI) at an air drive pressure (Pdrive) of 8 bar (116 PSI).

Parameters

Type	Pressurenratio	Maxnworking pressure		Min. gas inletnpressure		Max. gas inletnPressure		Connections:			Max. Flown[L/min]
		[bar]	[psi]	[bar]	[psi]	[bar]	[psi]	Drivenair	Gasninlet	Gasnoutlet
BPG-1D-02	1:2	16	232	0.1	1.45	16	232	G 1/2	NPT 1/2	NPT 1/2	960n[at Pᵢₙ of 6 bar]
BPG-1D-05	1:5	40	580	2	29	40	580	G 1/2	NPT 1/2	NPT 1/2	360n[at Pᵢₙ of 6 bar]
BPG-1D-06	1:6	48	696	3.5	50	48	696	G 1/2	NPT 1/2	NPT 1/2	110n[at Pᵢₙ of 6 bar]
BPG-1D-10	1:10	80	1160	5.5	79	80	1160	G 1/2	NPT 3/8	NPT 3/8	196n[at Pᵢₙ of 20 bar]
BPG-1D-15	1:15	120	1740	5.5	79	120	1740	G 1/2	NPT 1/4	NPT 1/4	135n[at Pᵢₙ of 20 bar]
BPG-1D-25	1:25	200	2900	10	145	200	2900	G 1/2	NPT 1/4	NPT 1/4	81n[at Pᵢₙ of 20 bar]
BPG-1D-40	1:40	320	4641	15	217	320	4641	G 1/2	NPT 1/4	NPT 1/4	49n[at Pᵢₙ of 20 bar]
BPG-1D-60	1:60	480	6961	25	362	480	6961	G 1/2	NPT 1/4	NPT 1/4	61n[at Pᵢₙ of 40 bar]
BPG-1D-100	1:100	800	11603	35	507	800	11603	G 1/2	NPT 1/4	M14*1.5	39n[at Pᵢₙ of 40 bar]

Pᵢₙ = Gas inlet pressure　 Pₒᵤₜ = Working pressure　 Pdrive = Air drive pressure　 i = Pressure ratio　 Pₒᵤₜ = Pdrive × i
